Adam Audio Sub7 140 Watts 1×7 inch Active Subwoofer Black

Adam Audio Sub7 140 Watts 1×7 inch Active Subwoofer Black

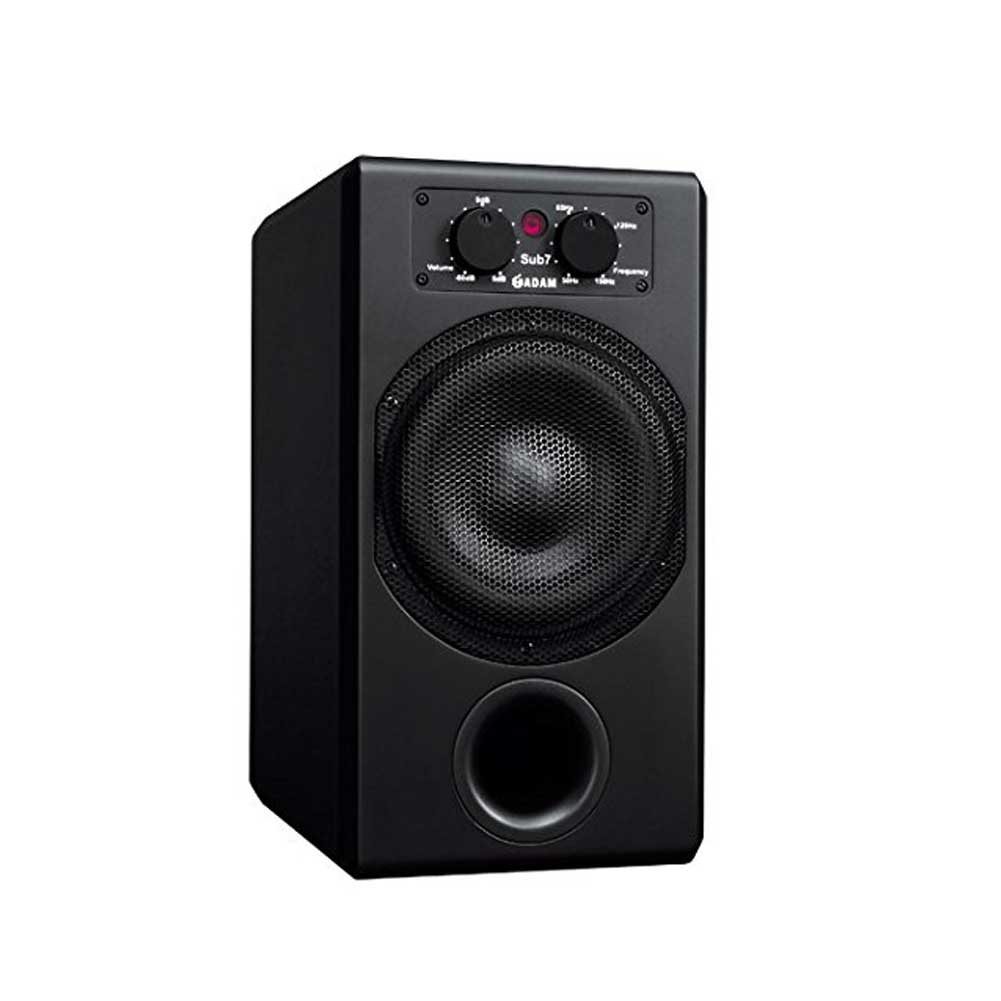

The Sub7 has been designed to complement smaller monitors such as the AX-Series. Its small footprint allows for easy placement, even in small environments. The included remote control facilitates volume changes or crossover frequency adjustments from your favorite listening position.

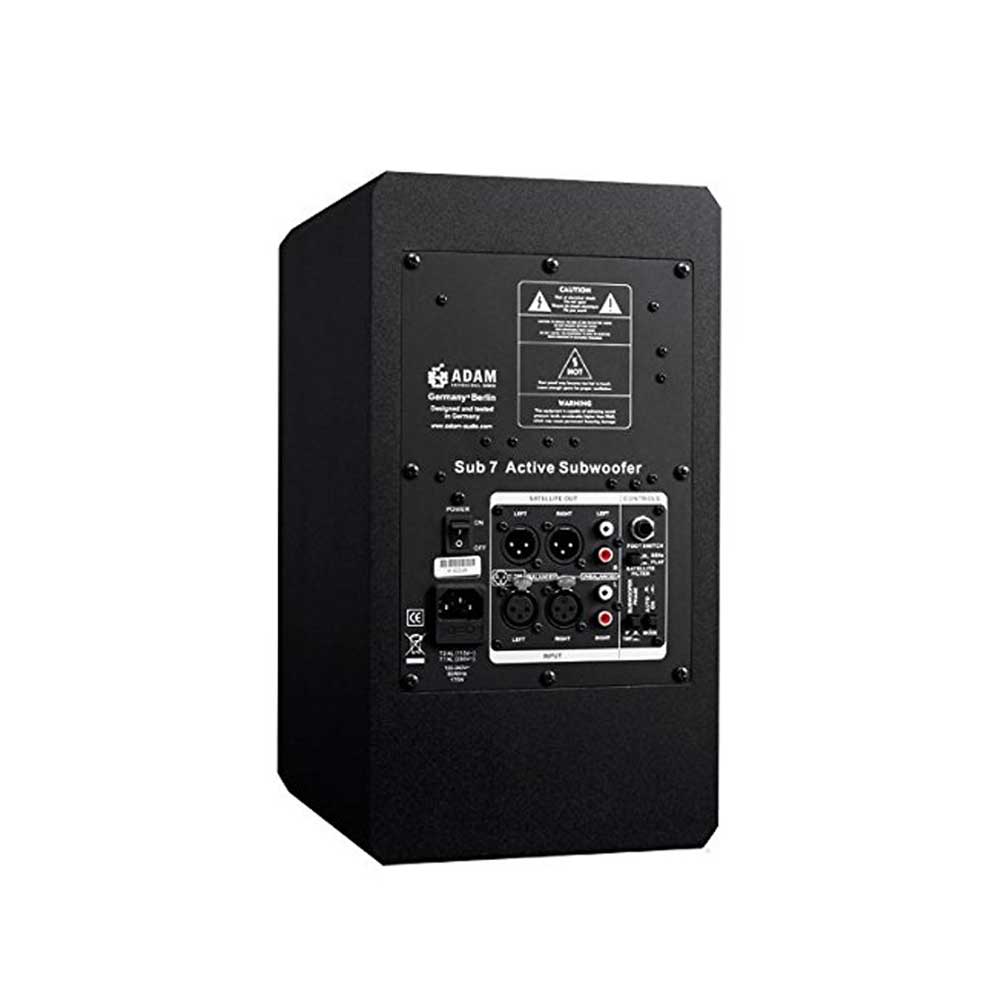

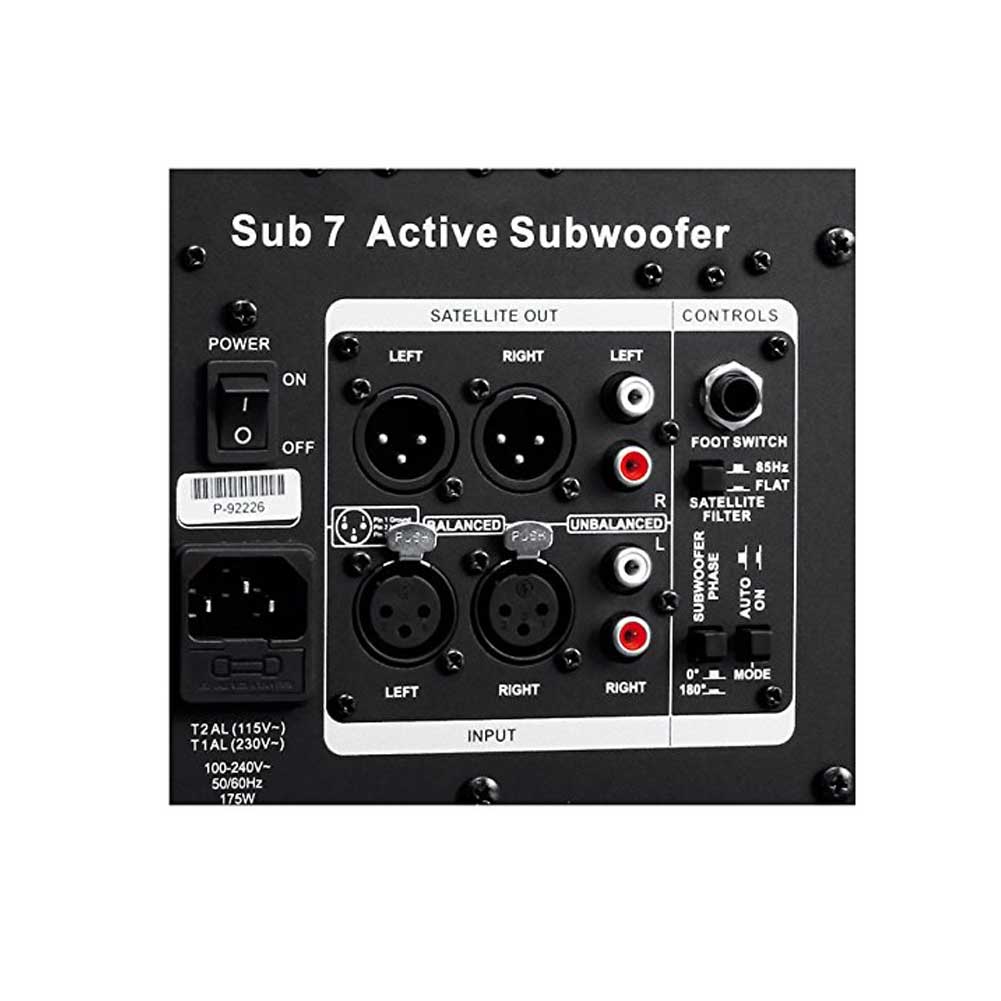

The Sub7 is equipped with both balanced (XLR) and unbalanced (RCA) input and output connectors, allowing the Sub7 to be used in home or studio environments. Numerous control options allow for many and varied adjustments to room acoustics or the satellites used.

The low cutoff frequency of 32Hz (-3dB) enables this subwoofer to reproduce even the lowest frequencies with accuracy and realism.

General Data
Panel: Front
Weight: 17.6 lb (8 kg)
Height x Width x Depth: 14.5″ (370 mm) x 8″ (200 mm) x 11″ (280 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Remote control, batteries (2 x AAA), power cord, manual

Audio Input Connectors
Analog: XLR / RCA
Input Impedance: 10 kOhm

Amplification
Type: PWM
Amp. Power RMS / Music: 140 W / 210 W

Acoustics
Frequency Response: 32 Hz – 150 Hz
THD > 60 Hz: ≤1 %
Max. peak SPL at 1 m: ≥107 dB
Crossover Frequencies: 50 – 150 Hz

Driver
Basket Diameter: 7″
Voice Coil Diameter: 1.5″ (38 mm)
Cone Material: Paper
Control Options
EQ 80 Hz: -60 to +6 dB
