Adam Audio Sub8 160 Watts Active Studio Subwoofer 1×8 inch Driver and Wireless Remote Black

Adam Audio Sub8 160 Watts Active Studio Subwoofer 1×8 inch Driver and Wireless Remote Black

ADAM Audio Sub8
The Sub8 is a small yet powerful subwoofer designed to extend the low frequency capabilities of any nearfield monitoring system down to 30Hz.

It houses a robust 8.5″ woofer with a 1.5″ voice coil driven by a 160W ICE power amplifier. This amp combines low heat generation with high performance to handle maximum power levels, even during long mix sessions.

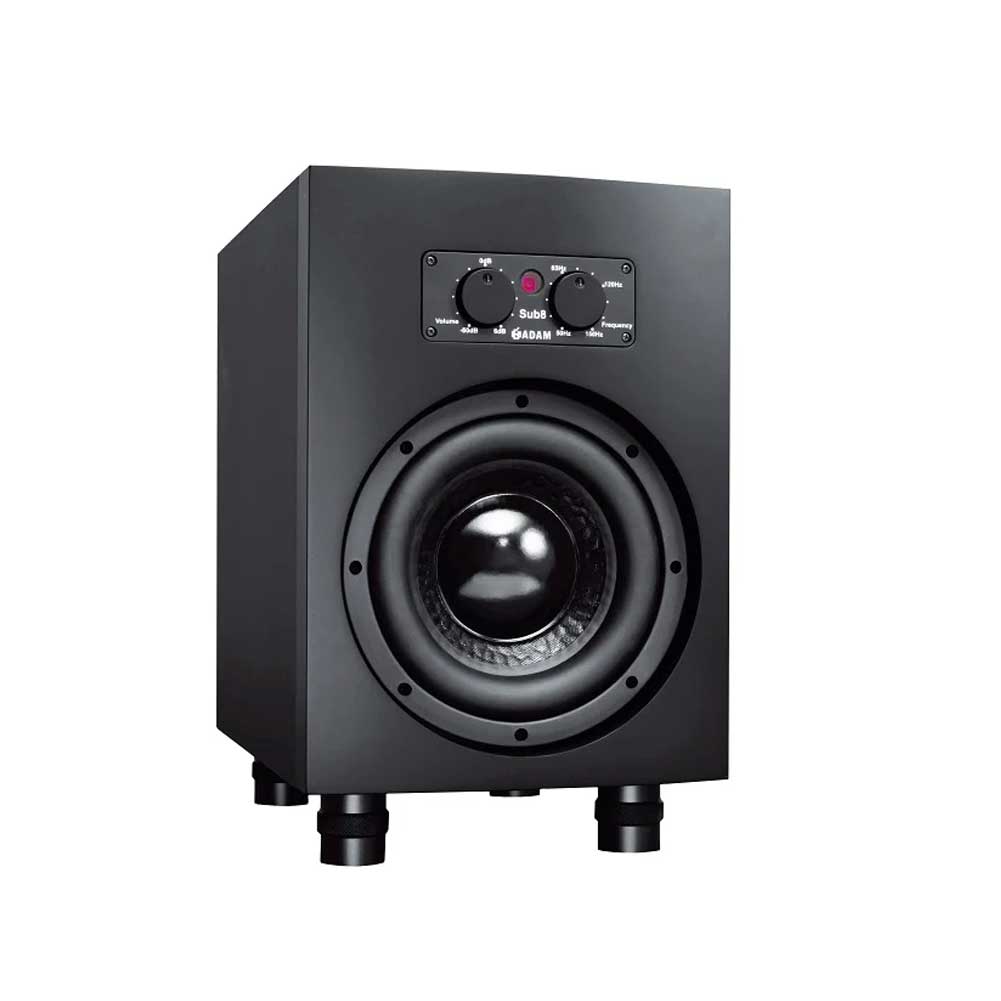

The front baffle features two motorized knobs that let you tailor input level and crossover frequency settings. These settings can also be controlled via the included wireless remote, allowing you to optimize your sound reproduction from your ideal listening position.

The Sub8 is designed for smaller rooms up to 20 square meters. It is an ideal match for the ADAM Audio A Series

Technical Data
View the specifications of the ADAM Audio Sub8 by clicking each drop-down section.

General Data
Panel: Front
Weight: 26.5 lb (12 kg)
Height x Width x Depth: 16″ (410 mm) x 10″ (260 mm) x 15″ (380 mm)
Warranty: 5 years (2 years warranty plus 3 years optional with product registration) (2 years warranty plus 3 years optional with product registration)
Delivery Contents: Remote control, batteries (2 x AAA), power cord, manual

Audio Input Connectors
Analog: XLR /RCA
Input Impedance: 10 kOhm

Amplification
Type: PWM
Amp. Power RMS / Music: 160 W / 240 W

Acoustics
Frequency Response: 28 Hz – 150 Hz
THD > 60 Hz: ≤1 %
Max. peak SPL at 1 m: ≥110 dB
Crossover Frequencies: 50 – 150 Hz

Driver
Basket Diameter: 8″
Voice Coil Diameter: 1.5″ (38 mm)
Cone Material: Paper

Control Options
EQ 80 Hz: -60 to +6 dB

DESCRIPTION
* Linear bass reproduction down to 28Hz
* Maximum Peak sound pressure in 1 m ≥ 110dB
* High-efficiency 160W PWM amplifier
* Special 8.5″ woofer with paper diaphragm
* Easy manual or automatic (de-)activation
* Upper cutoff frequency is selectable between 50Hz and 150Hz
* Switchable highpass filter for satellite outputs, rolls off signal below 85Hz
* Remote control included
* Analog XLR and RCA inputs
* Weight : 12 kg
* Height x Width x Depth : 16″ (410 mm) x 10″ (260 mm) x 15″ (380 mm)
