Charvel Pro-Mod DK24 HH 2PT CM Poplar Burl Caramelized Maple Fingerboard Electric Guitar Transparent Black Burst 2969411510

Charvel Pro-Mod DK24 HH 2PT CM Poplar Burl Caramelized Maple Fingerboard Electric Guitar Transparent Black Burst 2969411510

Charvel turns modern high performance on its head with the new Pro-Mod DK24 HH 2PT CM Poplar Burl, a brazen instrument for the progressive guitarist searching for an unparalleled spectrum of sound.

Featuring a sculpted shredder’s cut heel and a scalloped lower back bout for easy upper access to the fingerboard, the alder body in the classic Dinky style is topped in poplar burl and cloaked in a knockout Transparent Black Burst finish.

The bolt-on caramelized maple “speed” neck has graphite reinforcement, silky-smooth hand-rubbed satin urethane back finish, heel-mount truss rod adjustment wheel and Luminlay side dots. Its 12”-16” compound radius caramelized maple fingerboard features comfortable rolled edges, 24 jumbo frets, 4mm pearloid dot inlays and Graph Tech TUSQ XL nut.

Brimming with versatility courtesy of the mini two-way toggle switch for series and parallel, this axe features an HH pickup configuration consisting of a direct mount custom Seymour Duncan Full Shred SH-10B bridge pickup and direct mount custom Seymour Duncan Alnico II Pro APH-1N neck pickup. The bridge pickup radiates a crisp top-end with low-end articulation, while the neck pickup has incredible range with soaring highs and silky lows.

Blending sophisticated style with assertive tone, the Pro-Mod DK24 HH 2PT CM Poplar Burl also offers premium modern features such as a five-way blade pickup switch, Stratocaster-style skirt knobs for the volume (with 500K EVH Bourns low-friction potentiometer) and no-load tone controls, Gotoh Custom 510 recessed tremolo bridge, locking tuners, gold hardware and more.

Features

Alder Dinky Body with Poplar Burl Top

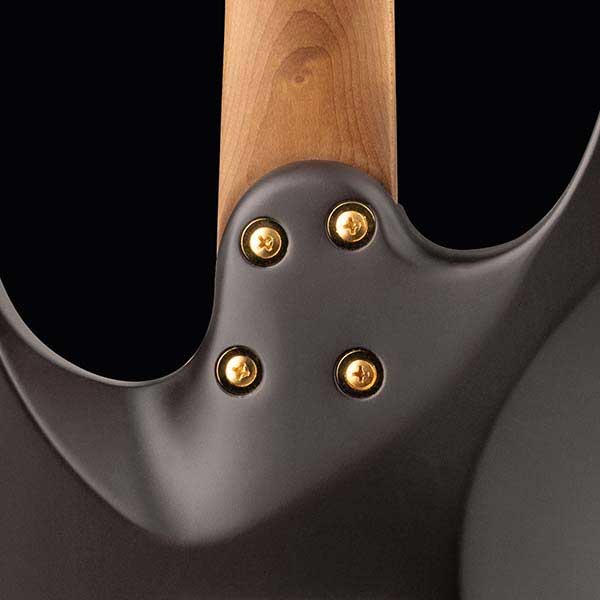

Bolt-on Maple Neck with Graphite Reinforcement

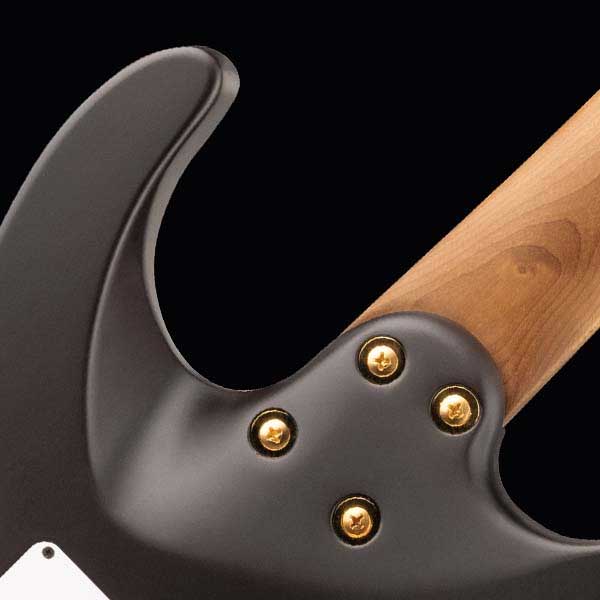

Scalloped Lower Back Bout

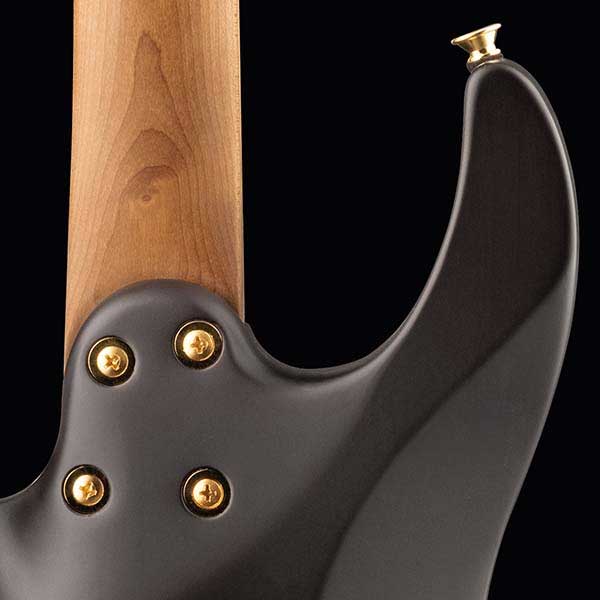

Shredder’s Cut Heel

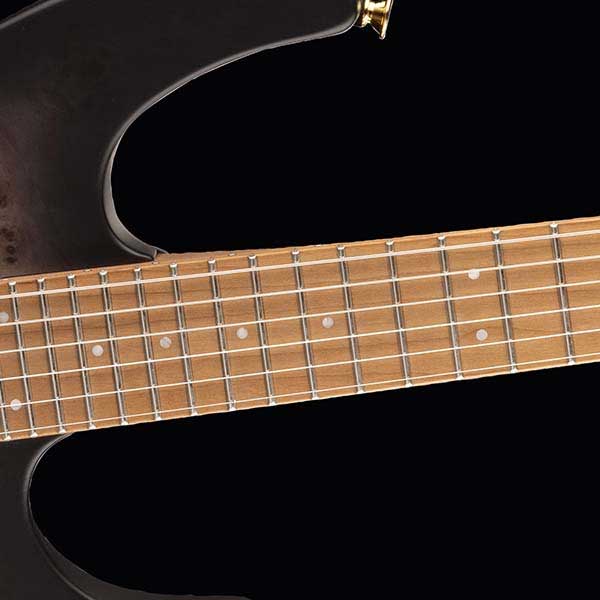

12″-16″ Compound Radius Caramelized Maple Fingerboard with Rolled Edges and 24 Jumbo Frets

Seymour Duncan Full Shred SH-10B and Seymour Duncan Alnico II Pro APH-1N Pickups

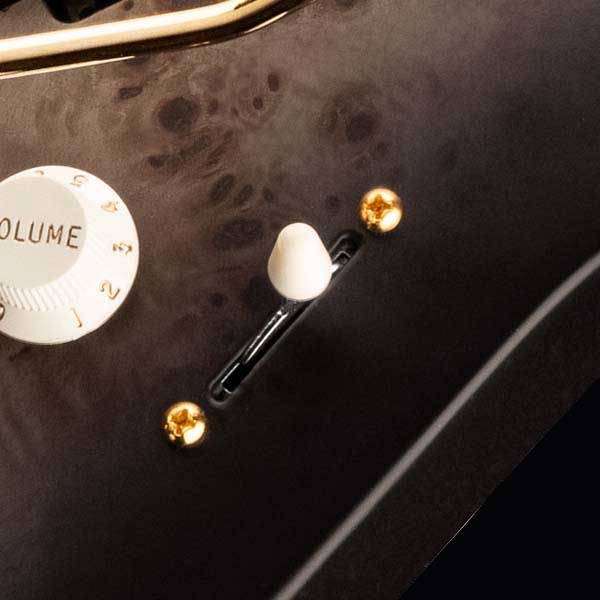

5-Way Blade, Strat-Style Skirt Knobs for Volume Control (with 500K EVH Bourns Low Friction Potentiometer) & No-Load Tone Control

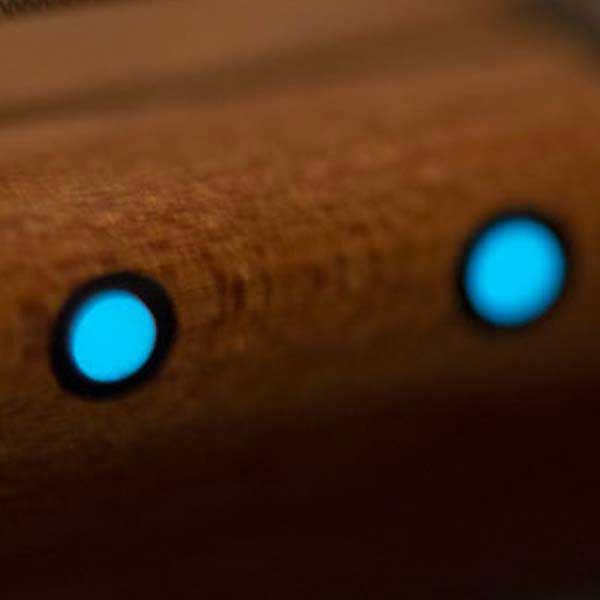

Luminlay Side Dots

Gotoh Custom 510 Tremolo Bridge

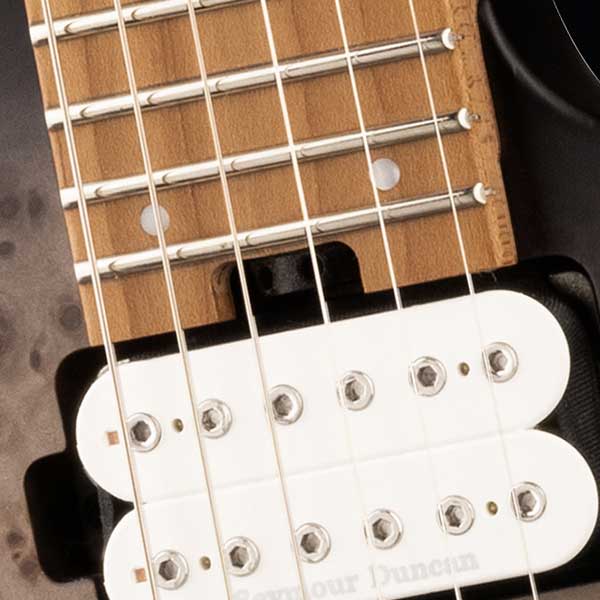

Heel-Mount Truss Rod Adjustment Wheel

General
Model Number 2969411510
Series Pro-Mod
Color Transparent Black Burst
Number of Strings 6
Orientation Right-Hand

Electronics
Bridge Pickup Custom Seymour Duncan Full Shred SH-10B
Neck Pickup Custom Seymour Duncan Alnico II Pro APH-1N
Pickup Color Flat Parchment
Controls Volume (500K EVH Bourns Low Friction Pot), No-Load Tone
Pickup Switching 5-Position Blade: Position 1. Bridge Pickup, Position 2. Both Outer Coils, Position 3. Bridge and Neck Pickup, Position 4. Both Inside Coils, Position 5. Neck Pickup
Auxiliary Switching 2-Position Mini Toggle Down/All Series, Up/All Parallel
Pickup Configuration HH

Body
Body Finish Satin
Body Shape Dinky
Body Material Alder
Body Top Poplar Burl

Hardware
Bridge Gotoh Custom 510 Tremolo
Hardware Finish Gold
Tremolo Arm Gotoh
Tuning Machines Charvel-Branded Die-Cast Locking
Pickguard None
Control Knobs Strat-Style Skirt
Switch Tip Parchment
Saddle Height Wrench Yes

Neck
Neck Material Caramelized Maple
Neck Construction Bolt-On with Graphite Reinforcement
Neck Finish Hand-Rubbed Satin Urethane
Neck Shape Speed Neck with Rolled Fingerboard Edges
Neck Binding None – Rolled Fingerboard Edges
Scale Length 25.5″ (648 mm)
Fingerboard Radius 12″-16″ Compound Radius (304.8 mm to 406.4 mm)
Fingerboard Material Caramelized Maple
Number of Frets 24
Fret Size Jumbo
Nut Material Graph Tech TUSQ XL
Nut Width 1.6875″ (42.86 mm)
Position Inlays 4mm Pearloid Dot
Side Dots Luminlay
Truss Rod Nut Heel-Mount Truss Rod Adjustment Wheel
String Trees Fender Standard String Guide
Headstock Licensed Fender Stratocaster
Neck Plate None – 4-Bolt Sculpted Heel

Miscellaneous
Strings Nickel Plated Steel (.009-.042 Gauges)
Strap Buttons Standard
Other Features Luminlay Side Dots
