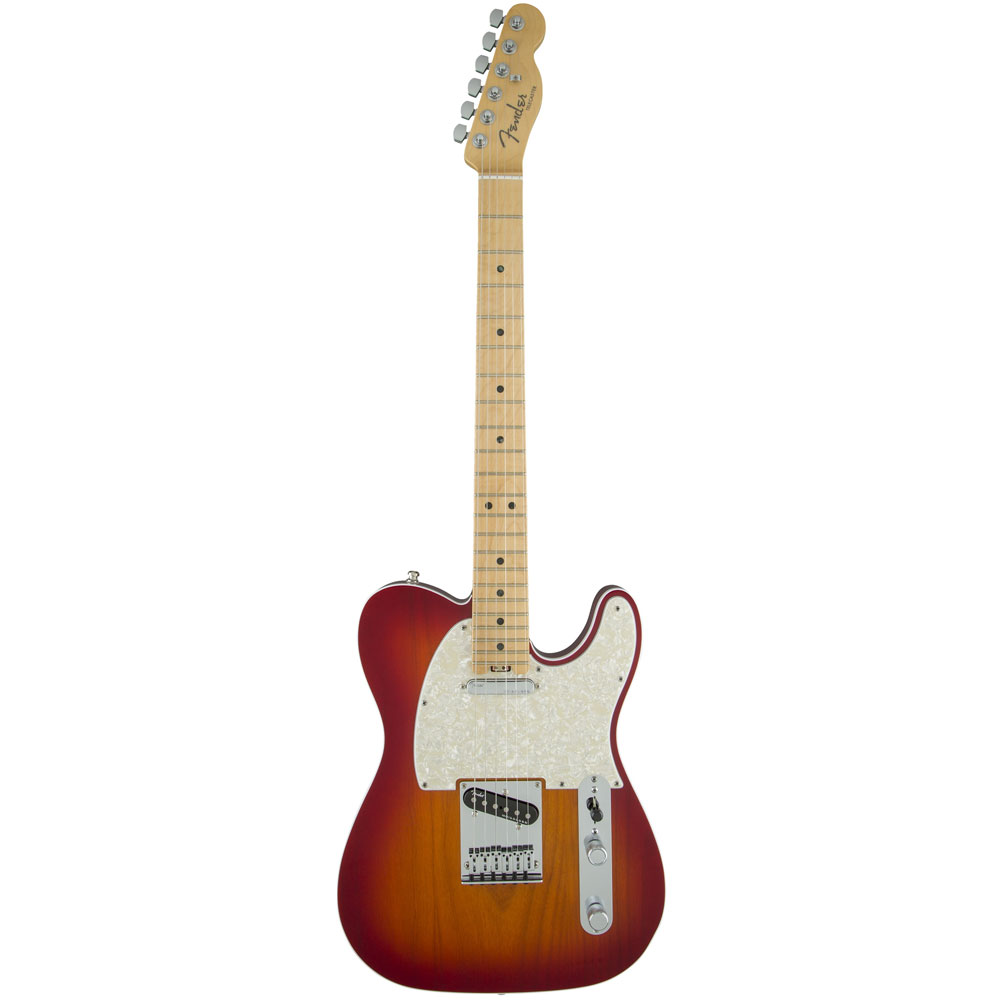

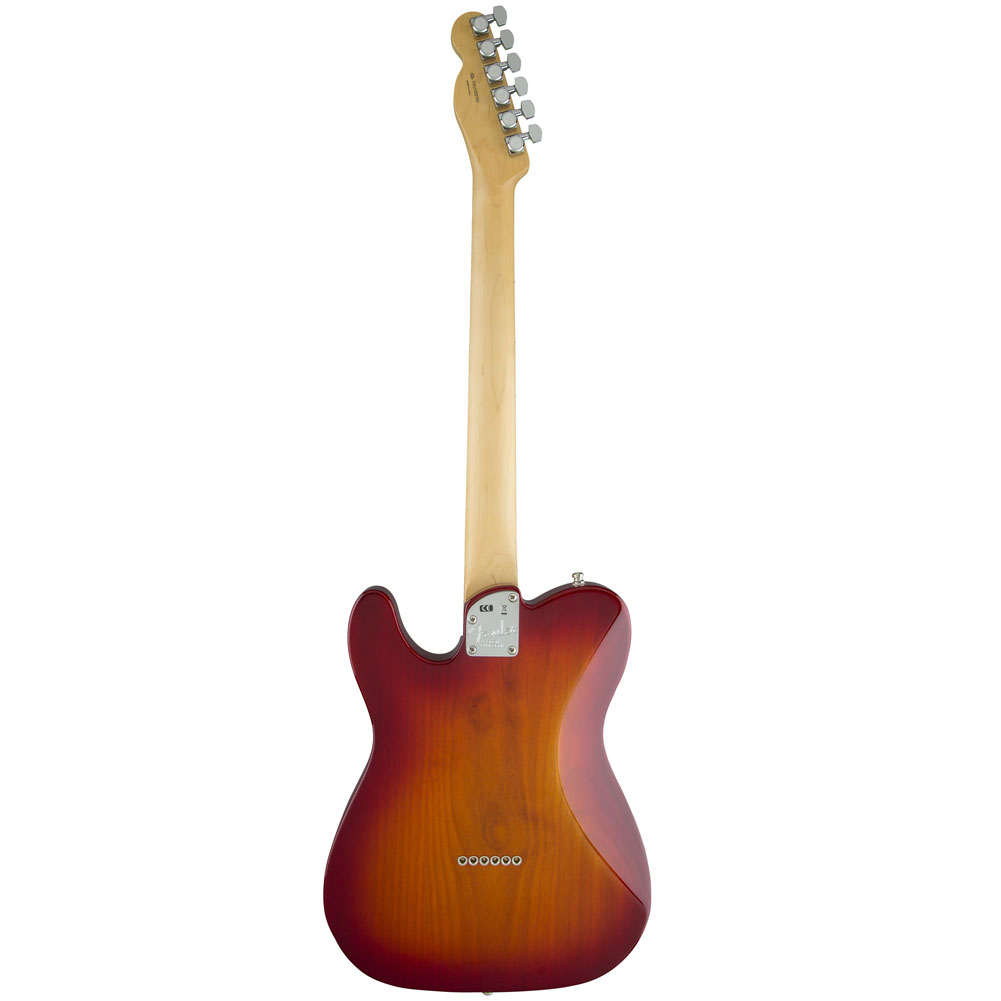

Fender American Elite Telecaster Maple ACB 0114212731 Electric Guitar

FEATURES

• Single cutaway electric guitar
• Two all-new fourth generation Noiseless single-coil Telecaster pickups
• S-1™ switching switches between parallel and series pickup wiring
• Compound profile neck; redesigned contoured neck heel
• 9.5”-14” compound radius fingerboard
• Locking short-post tuning machines
• Includes redesigned ABS Elite Molded Case with TSA locks
• • HIGHLIGHTS
  •

    ALL-NEW AMERICAN ELITE NECK

    Designed for 21st-century players, the American Elite Series sports a new compound neck profile designed for comfort and the ultimate playability. A modern “C”-shape at the nut, the rear of the neck morphs along the length of the neck to a modern “D”-shaped profile at the updated neck heel, providing plenty of ergonomic support.



    ALL-NEW 4TH GENERATION NOISELESS PICKUPS

    With the all-new 4th generation Noiseless pickups, exclusive to the American Elite Series, we’ve achieved the sonic equivalent of cold fusion—authentic vintage-style Fender sound combined with noise-free performance. A quantum leap in pickup technology, these bleeding-edge pickups are the pinnacle of our pickup designs, offering crisp, clear cleans as well as gigantic overdriven tones that are bursting with pure rock power.



    ALL-NEW AMERICAN ELITE NECK HEEL

    For improved upper register access and elegantly functional modern style, the American Elite Series’ new cutaway neck heel blends into the asymmetrical neck volute for comfortably enhanced playing feel.



    NEW DOUBLE ACTION TRUSS ROD ADJUSTMENT WHEEL

    The new double action truss rod adjustment wheel makes it a snap to adjust the instrument’s neck relief without any special tools.



    LOCKING TUNING MACHINES WITH ALL SHORT POSTS

    Enjoy lightning-fast, easy re-stringing and enhanced playability from the new locking short post tuning machines. Not only do they provide increased break angle at the nut, they also increase tuning stability.



    S-1™ SWITCH

    The S-1 switch on this model activates series or parallel wiring options when using both pickups for even more tonal variations. Discreetly placed atop the volume control, it engages or disengages at the tap of a finger for on-the-fly adjustments.

  • • SPECS
    • BODY

      • • Body Material
          Alder



      • • Body Finish
          Gloss Polyurethane



      • • Body Shape
          Telecaster®



      • Body Binding
        White

      NECK

      • • Neck Material
          Maple



      • • Neck Finish
          Satin Urethane Finish on Back of Neck with Gloss Urethane Headstock Face



      • • Neck Shape
          Compound Back Shape, Modern “C” to “D”



      • • Scale Length
          25.5″ (648 mm)



      • • Fingerboard Material
          Ebony



      • • Fingerboard Radius
          9.5″ to 14″ Compound Radius (241 mm-355.6 mm)



      • • Number of Frets
          22



      • • Fret Size
          Medium Jumbo



      • • Nut Material
          Bone



      • • Nut Width
          1.685″ (42.8 mm)



      • • Position Inlays
          Large Pearloid Dots



      • • Truss Rod
          Dual-Action



      • Truss Rod Nut
        Heel-Mounted Spoke Wheel Adjustment

      ELECTRONICS

      • • Bridge Pickup
          New 4th Generation Noiseless™



      • • Neck Pickup
          New 4th Generation Noiseless™



      • • Controls
          Master Volume (with S-1™ Switch) Master No-Load Tone



      • • Switching
          3-Position Blade: Position 1. Bridge Pickup, Position 2. Bridge and Neck Pickups, Position 3. Neck Pickup



      • • Configuration
          SS



      • Special Electronics
        S-1™ Switch

      HARDWARE

      • • Bridge
          6-Saddle American Tele® with Chromed Brass Saddles



      • • Hardware Finish
          Chrome



      • • Tuning Machines
          Deluxe Cast/Sealed Locking



      • • Pickguard
          3-Ply Mint Green



      • • Control Knobs
          Knurled Flat-Top



      • • Switch Tip
          Barrel Style



      • Neck Plate
        4-Bolt Asymmetrical

      MISCELLANEOUS

      • • Strings
          Fender® USA, NPS, (.009-.042 Gauges)



      • Legal Notice
        Product Prices, Features, Specifications and Availability Are Subject To Change Without Notice

      ACCESSORIES

      • Case/Gig Bag
        Elite Molded Case
