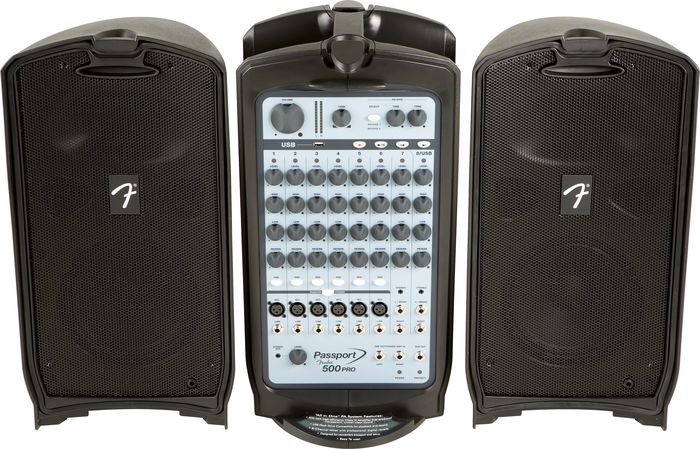

Fender Passport 500

Buy at www.musicianscart.com Fender Passport  500 (PD 500)

Any time and any place you need big sound with great clarity and convenience, there’s a Passport® PRO system by Fender® that’s right for you. Take a close look and listen, and we know you’ll agree that Passport will take you places now as never before. PRO models are the latest step in the ongoing evolution of Passport into the very finest in portable PA solutions; keeping the best of previous Passport generations and adding new features and improved functionality so that Passport systems are ideal for whatever your application may be – education, sporting and worship events; meetings, seminars and presentations; gigs at parties, small clubs and coffee houses. The eight-channel Passport 500 PRO is the top-of-the-line Passport system. The 500 model has always had the most power and the best clarity; now it also has a port that lets you record your performance with CD quality (.wav) straight to a USB flash drive, CD-quality .wav and mp3 file playback, sub-out jack for an external powered sub-woofer, lighter weight (a full 9 lbs. lighter than the earlier Passport 500 model), smaller physical dimensions and a redesigned speaker system with 10” woofer and improved clarity.

General

Model Name: Passport® 500 PRO
Series: Passport®
Amplifier Type: Class-D
Color / Part #:
Black
069-4405-000
Electronics

Effects Loop: Effects Loop (Preamp Out, Power Amp In)
Inputs: 6 MIc/Line inputs, 2 Stereo inputs
Auxiliary Input: USB Connection
Line Out: 1/8″ MIni Stereo Out, Subwoofer Out
Extension Speaker Jack: 1/4″ Subwoofer Out
Channels: 8 (6 Mic/Line, 2 Stereo)
Power Handling: 500 Watts Class-D Power Amp
Horn/Tweeter: 1.2″ Horn Loaded Tweeter
Controls: Tilt tone control on each channel, level, reverb send, master volume, master tone, 20db Pad.
Hardware

Cabinet Material: Black Luggage Style Molded Plastic Case
Handle: Molded Black Handle
Amplifier Length: 11″ (27.94 cm)
Amplifier Width: 29″ (73.66 cm)
Amplifier Height: 23″ (58.42 cm)
Amplifier Weight: 44 lbs. (19.96 kg)
Effects: Selectable and adjustable reverb
Speakers

Speaker: 10″ Woofer, 1.2″ Horn Loaded Tweeter
Speaker Impedance: 4 Ohms
Miscellaneous

Additional Comments: Shipping Weight: 61 lbs
Unique Features: USB Port that lets You Record Your Performance with CD Quality (.wav) Straight to a USB Flash Drive, Six Mic Lines with XLR and 1/4″ inputs, Two Stereo Inputs with 1/4″ and 1/8″ (for MP3 Player) Inputs, 1/4″ Subwoofer Out with 120Hz High Pass Filter on Speaker Out, CD-Quality .wav and mp3 File Playback. Docking Connector for Passport Wireless Receiver, Speaker Systems Feature Tightly Controlled Coverage to Minimize Feedback, 35mm (1-3/8″) Stand Adapters are Built In to Each Speaker Cabinet, Mic/Cable Storage Compartment with Latching Lid.
Accessories

Knobs: Black Plastic Amp Knobs
Accessories: Includes Two Speaker Cables and Detachable Power Cable.
Cover: Optional Amp Cover Available
