Ibanez AAD170CE LGS Advanced Acoustic Series Grand Dreadnought Cutaway body Electro Acoustic Guitar with Gig Bag

Ibanez AAD170CE LGS Advanced Acoustic Series Grand Dreadnought Cutaway body Electro Acoustic Guitar with Gig Bag

Advanced Acoustic Series
The Advanced Acoustic series represents an important step forward in the long and storied tradition of the acoustic guitar. In what amounts to a fully reimagined acoustic experience, these instruments were designed from the ground up to deliver a richer, brighter, and louder tone, with an unprecedentedly wide dynamic range. With slightly larger than typical proportions, we decided to name this new body shape the “Grand Dreadnought.” This reinvented design achieves a superb, powerful sound, and thanks to the extensive consideration given to the ergonomics, it’s extremely comfortable to play. The Advanced Acoustic series pushes the acoustic guitar to new heights, in a way that promises an exciting new experience for all players.

SPECS

• body shape Grand Dreadnought with Advanced Access Cutaway body
  bracing X-M Bracing
  top Solid Sitka Spruce top
  back & sides Okoume back & Okoume sides
  neck Low Oval Grip with Rounded Fretboard EdgeThermo Aged Nyatoh neck
  fretboard Ovangkol fretboard
  bridge Ovangkol scalloped bridge
  inlay White dot inlay
  soundhole rosette Wooden rosette with Soundhole binding rosette
  tuning machine Chrome Die-cast tuners (18:1 gear ratio)
  nut material Bone
  number of frets 20
  saddle material Compensated Bone saddle
  bridge pins Ibanez Advantage
  strings D’Addario XTAPB1253
  string gauge .012/.016/.024/.032/.042/.053
  string space 11mm
  factory tuning 1E,2B,3G,4D,5A,6E
  pickup Ibanez AP11 Magnetic
  preamp Ibanez Custom Electronics w/ Volume and Tone Control
  output jack 1/4″ Endpin Jack

NECK DIMENSIONS

• Scale : 651mm
  a : Width 43mm at NUT
  b : Width 55mm at 14F
  c : Thickness 21mm at 1F
  d : Thickness 22mm at 7F
  Radius : 400mmR

BODY DIMENSIONS

• a : Length 20 3/8″
  b : Width 16 1/4″
  c : Max Depth 5 “

PREAMP
AAD170CE’s preamp diagram

OTHER FEATURES
Recommended Case FS40DA
Recommended Bag IAB540-BK

Features

Grand Dreadnought body
Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It’s also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

X-M Bracing
After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

Advanced Access Cutaway
Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.

Low Oval Grip Thermo Aged Nyatoh neck with Rounded Fretboard Edge
The Low Oval neck grip is designed for easy chord strumming and the Rounded Fretboard Edges provides superior playability. Thermo Aged, a special drying process, makes the neck light and hard and provides stability and better resonance.

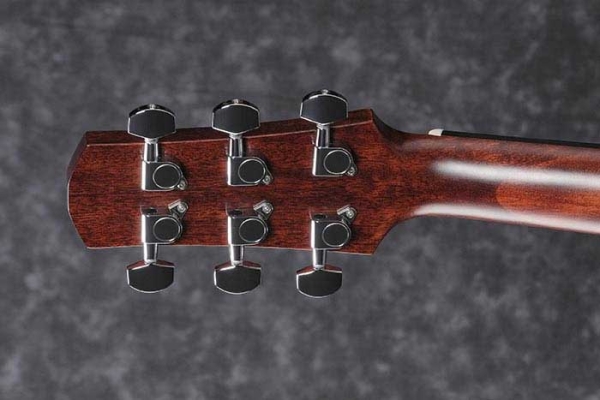

Functional Tapered Headstock
The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

Ibanez AP11 Magnetic pickup
The AP11 pickup is small, lightweight and positioned so it won’t inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar’s natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus and many others.

Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez Advantage bridge pins
These pins really are an advantage over old-fashioned pins. Advantage pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage the pin and string stay put.
