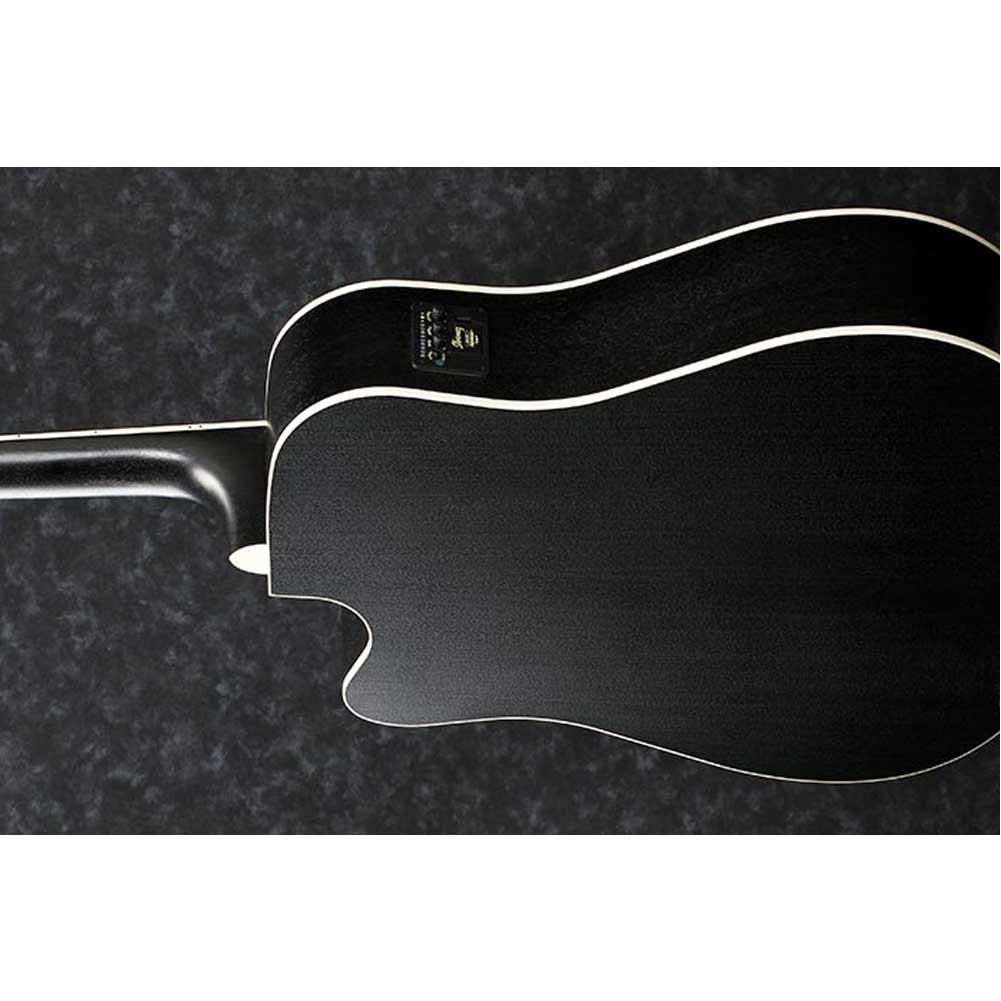

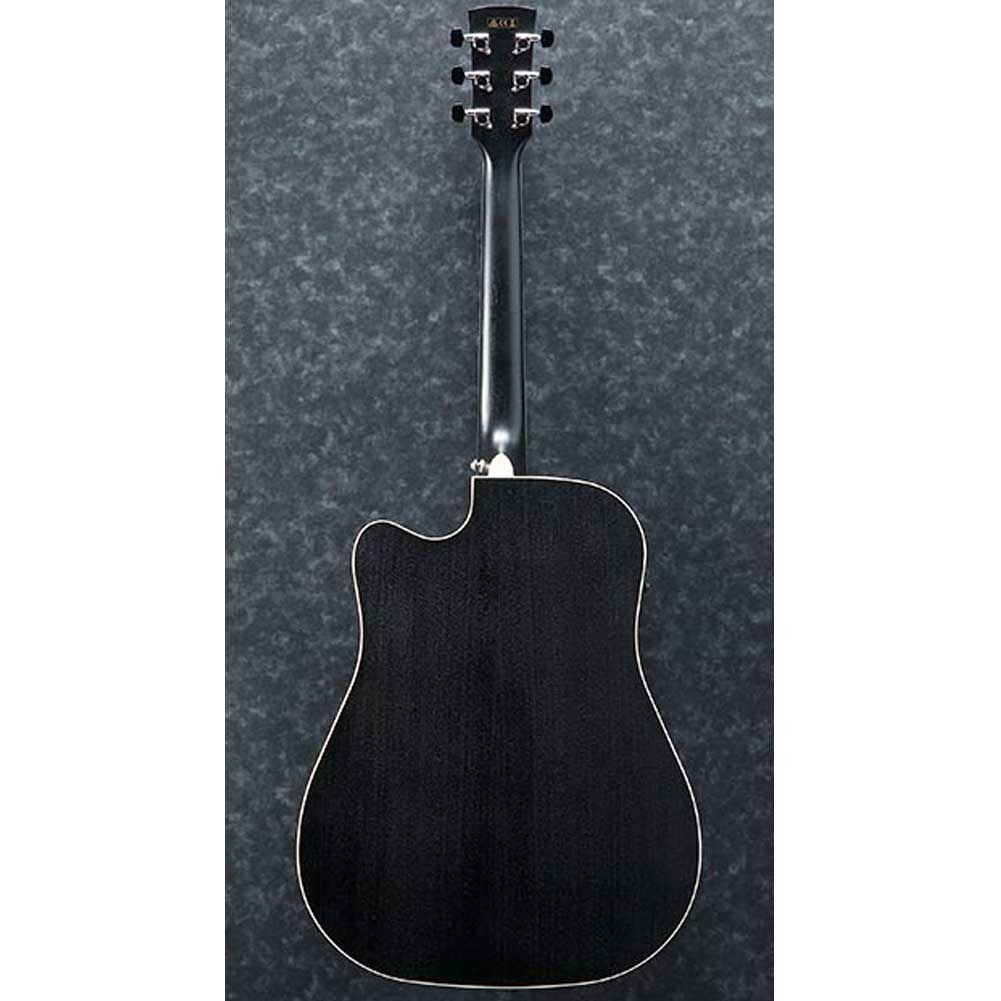

Ibanez AW84ECE WK Artwood Cutaway Dreadnought body AEQ-TP2 preamp with Onboard tuner Electro Acoustic Guitar with Gig Bag

Artwood

• body shape Cutaway Dreadnought body
  top Solid Okoume top
  back & sides Okoume back & Okoume sides
  neck AW Nyatoh neck
  fretboard Ovangkol fretboard
  bridge Ovangkol bridge
  inlay White dot inlay
  soundhole rosette Black & White multi
  tuning machine Chrome Die-cast tuners
  nut material Bone
  number of frets 20
  saddle material Compensated Bone
  bridge pins Ibanez Advantage
  strings D’Addario XTAPB1253
  string gauge .012/.016/.024/.032/.042/.053
  string space 11mm
  factory tuning 1E,2B,3G,4D,5A,6E
  pickup Ibanez T-bar Undersaddle
  preamp Ibanez AEQ-TP2 preamp w/Onboard tuner
  output jack Balanced XLR & 1/4″ outputs

NECK DIMENSIONS

Scale	651mm
a : Width at Nut	43mm
b : Width at 14th Fret	55mm
c : Thickness at 1st	21mm
d : Thickness at 7th	22mm
Radius	400mmR

BODY DIMENSIONS

a : Length	20″
b : Width	15 3/4″
c : Max Depth	5″

PREAMP
AW84ECE’s preamp diagram

OTHER FEATURES
Recommended Case FS40DA
Recommended Bag IAB540-BK

FEATURES

Ibanez AEQ-TP2 preamp w/Onboard tuner
The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

Balanced XLR and 1/4″ outputs

Ibanez Advantage bridge pins
These pins really are an advantage over old-fashioned pins. Advantage pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage, the pin and string stay put.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ovangkol bridge
The Ovangkol bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
