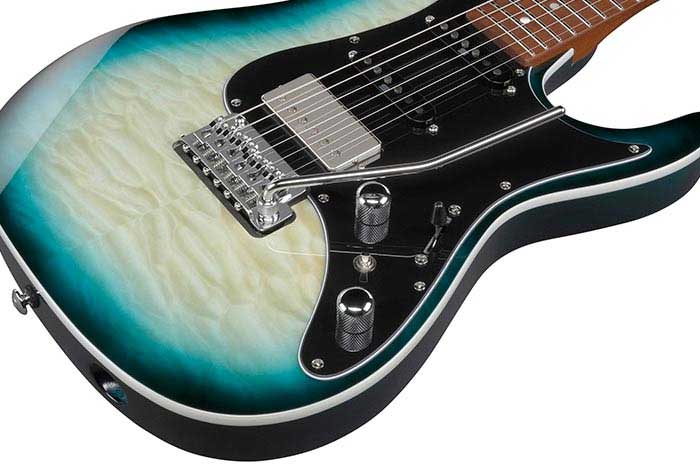

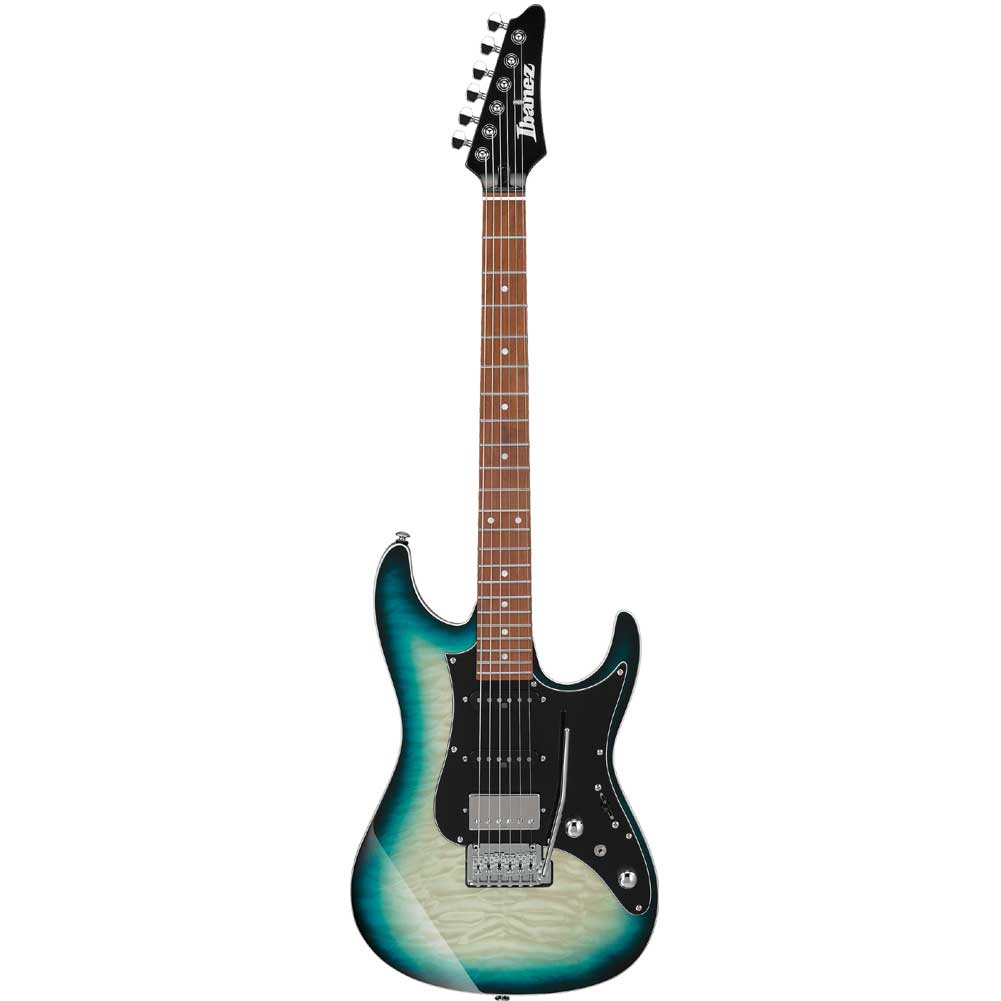

Ibanez AZ24P1QM DOB AZ Premium Series Electric Guitar 6 String with Gig Bag

Ibanez AZ24P1QM DOB AZ Premium Series Electric Guitar 6 String with Gig Bag

SPECS

• neck type AZ Oval C Roasted Maple neck
  top/back/body Quilted Maple top American Basswood body
  fretboard Roasted Maple fretboard Mother of Pearl dot inlay
  fret Jumbo Stainless Steel frets
  number of frets 22
  bridge Gotoh® T1502 bridge
  string space 10.5mm
  neck pickup Seymour Duncan® Hyperion™ (S) neck pickupPassive/Alnico
  middle pickup Seymour Duncan® Hyperion™ (S) middle pickupPassive/Alnico
  bridge pickup Seymour Duncan® Hyperion™ (H) bridge pickupPassive/Alnico
  factory tuning 1E,2B,3G,4D,5A,6E
  strings D’Addario® EXL110
  string gauge .010/.013/.017/.026/.036/.046
  nut Graph Tech® nut
  hardware color Chrome

NECK DIMENSIONS

• Scale : 648mm/25.5″
  a : Width 42mm at NUT
  b : Width 57mm at 24F
  c : Thickness 20.5mm at 1F
  d : Thickness 22.5mm at 12F
  Radius : 305mmR

SWITCHING SYSTEM
AZ24P1QM’s Switching system diagram

CONTROLS
AZ24P1QM’s control diagram

OTHER FEATURES
Recommended Case MR500C
Gig bag included
dyna-MIX9 switching system w/Alter Switch
Gotoh® MG-T locking machine heads
Luminescent side dot inlay

Features

Quilted Maple top / American Basswood body
The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

Roasted Maple fretboard
Heat-treatment provides a well-balanced attack and tone and a rich sustain. In order to achieve supreme neck grip comfort, the fretboard edge is finished with a smooth curve.

Gotoh MG-T locking machine heads
The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted neck
Heat-treatment increases the wood’s stability, durability, water resistance and tolerance of temperature changes.

Gotoh T1502 tremolo bridge
The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

dyna-MIX 9 switching system w/Alter switch
dyna-MIX 9 offers nine sound variations, and can easily switch between humbucker and single coil modes with just the mini switch. One mode is even able to simulate a humbucker sound from the combination of the 2 single coil pickups.

Seymour Duncan Hyperion Pickups
Seymour Duncan Hyperion Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets
