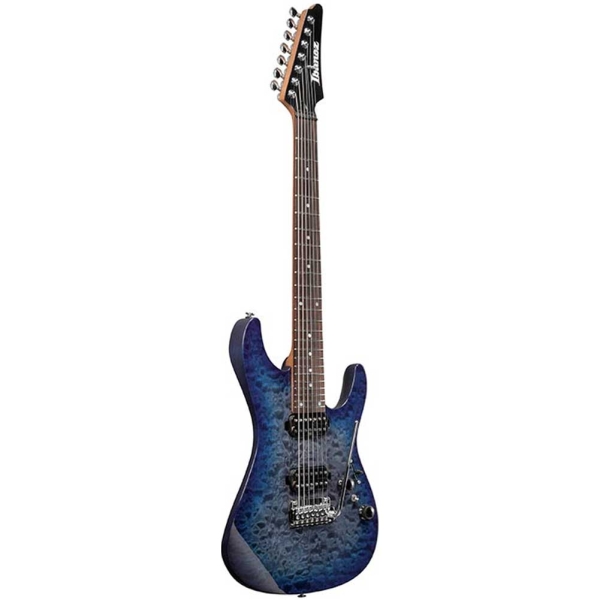

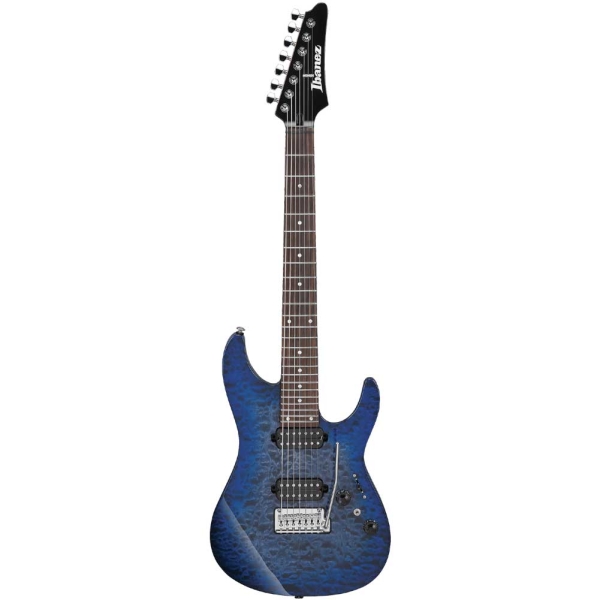

Ibanez AZ427P2QM TUB AZ Premium Series 7 String Electric Guitar with Gig Bag

Ibanez AZ427P2QM TUB AZ Premium Series 7 String Electric Guitar with Gig Bag

SPECS
neck type AZ 7 Oval C Roasted Maple neck
top/back/body Quilted Maple top American Basswood body
fretboard Rosewood fretboard Mother of Pearl dot inlay
fret Jumbo Stainless Steel frets
number of frets 24
bridge Gotoh T1572S bridge
string space 10.5mm
neck pickup Seymour Duncan Hyperion 7 (H) neck pickup Passive/Alnico
bridge pickup Seymour Duncan Hyperion 7 (H) bridge pickup Passive/Alnico
factory tuning 1E,2B,3G,4D,5A,6E,7B
strings D’Addario EXL110-7
string gauge .010/.013/.017/.026/.036/.046/.059
nut Graph Tech nut
hardware color Chrome

NECK DIMENSIONS
Scale : 648mm/25.5″
a : Width 47mm at NUT
b : Width 66mm at 24F
c : Thickness 20.5mm at 1F
d : Thickness 22.5mm at 12F
Radius : 305mmR

SWITCHING SYSTEM
AZ427P2QM’s Switching system diagram

CONTROLS
AZ427P2QM’s control diagram

OTHER FEATURES
Recommended Case MR500C
Gig bag included
dyna-MIX10 switching system w/Alter Switch
Gotoh MG-T locking machine heads
Luminescent side dot inlay

Features

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Luminescent side dots
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh MG-T locking machine heads
The Gotoh MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Quilted Maple top / American Basswood body
The Quilted Maple top sonically enriches the response for picking and the American Basswood body delivers a natural and flat tone.

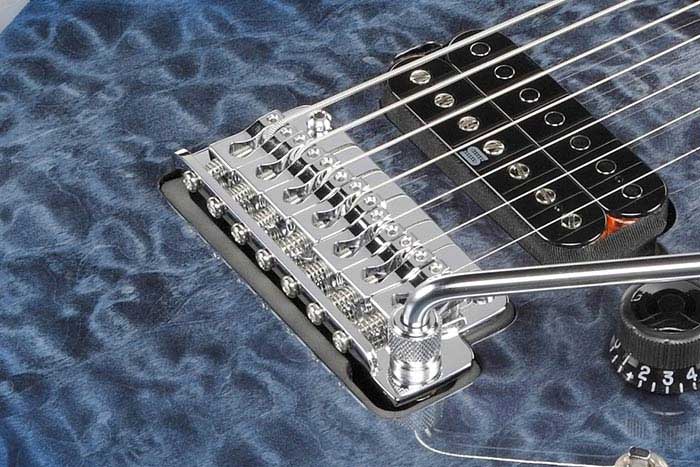

Gotoh T1572S tremolo
The T1572S tremolo bridge features steel saddles and a steel tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

Oval C Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.

dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.

Seymour Duncan Hyperion Pickups
Seymour Duncan Hyperion Pickups feature a moderate output through Alnico-5 magnets to keep the clarity of the fundamental tone when using a distortion sound, and to deliver a clear pick attack. From treble to bass, the overall tonal balance is evenly adjusted., and works well with various effect pedals.

Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
