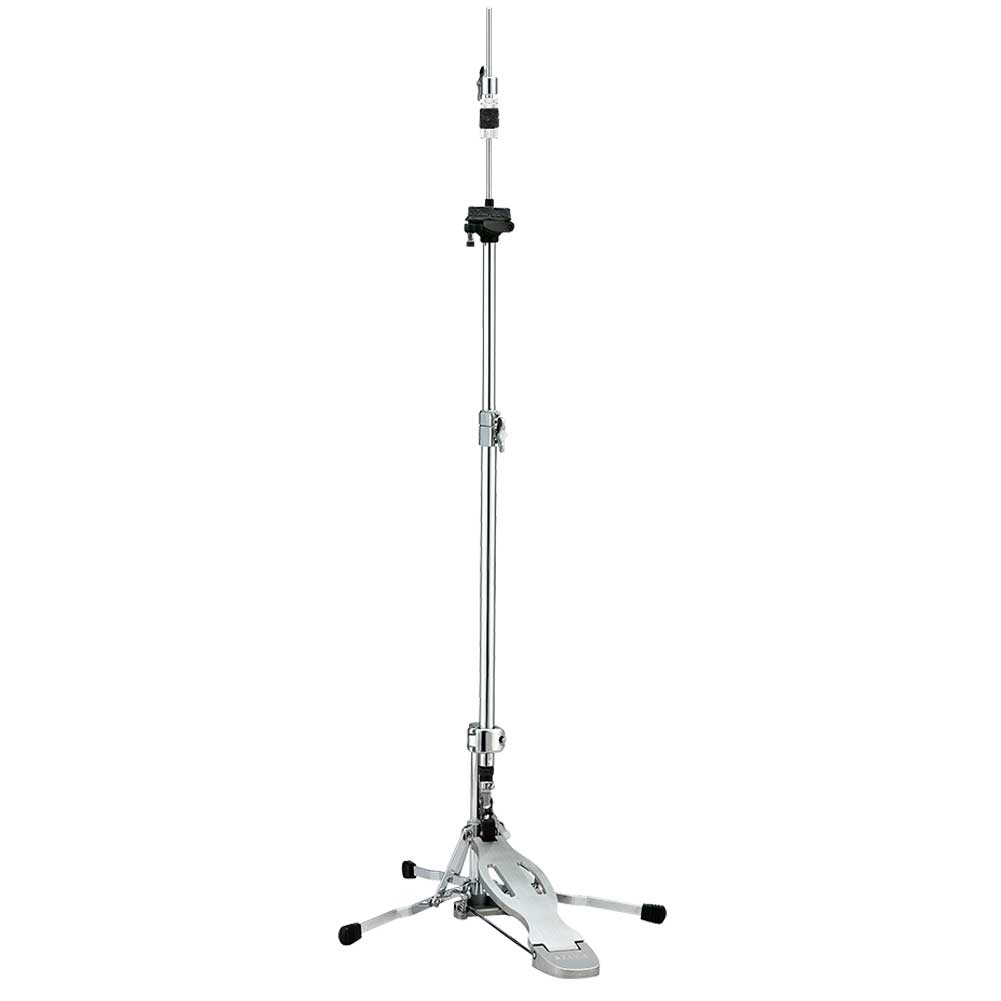

Tama HH55F Classic Hi-Hat Stand

The Classic Hi-Hat Stand
Inspired by the vintage hi-hat stands of the 1960s, we are proud to announce our new extremely lightweight and compact The Classic Hi-Hat Stand. This hi-hat stand is not merely a rehash of old designs, but a beautiful blend of vintage style with the strength, adjustability, and reliability of modern construction. In addition, the hi-hat stand’s compact folding design and light weight make it very easy to transport.

Model No. HH55F
Model Name The Classic Hi-Hat Stand
Details
•Weight: 2.3kg (5.1lbs)
•Heigh Adjustment Rnage：650mm-950mm (26 3/8″ – 36 5/8″)
•Storage size： 500mm (19 11/16″) (upper section) / 600mm (23 5/8″) （lower section）

FEATURES
The following is a detailed introduction to the many unique mechanisms on board.

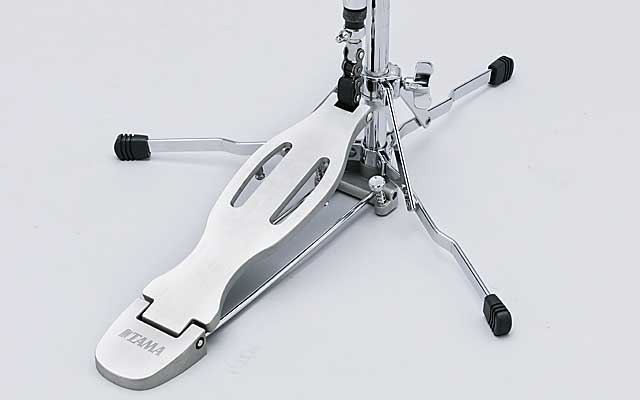

Single Braced Flat Base Tripod Legs
This hi-hat stand features a flat base with single braced legs making for a sleek, lightweight design that’s very easy to transport.

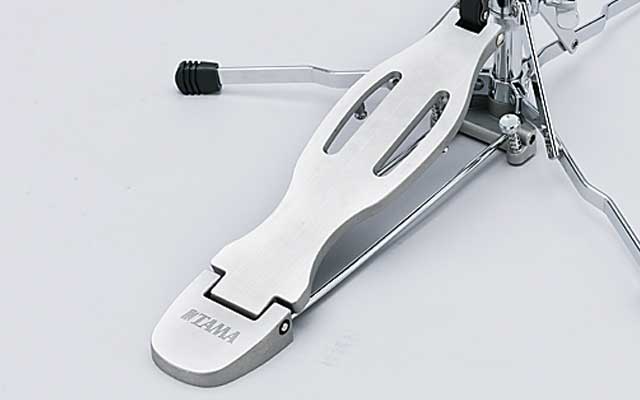

Smooth Surface Footboard
The newly designed classic style footboard takes advantage of both a lightweight construction and smooth surface, making it a great choice for any drumming style.

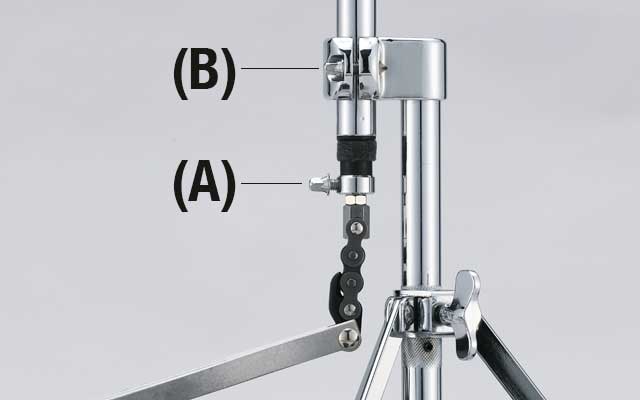

Individual Adjustment of Spring Tension & Footboard Angle
The spring tension and footboard angle can be adjusted individually using a drum key.

-Spring Tension
While loosening the square head bolt A, move the footboard up and down to adjust the spring tension.

-Footboard Angle Adjustment
While loosening the square head bolt B, slide the center pipe up and down to adjust the footboard angle.

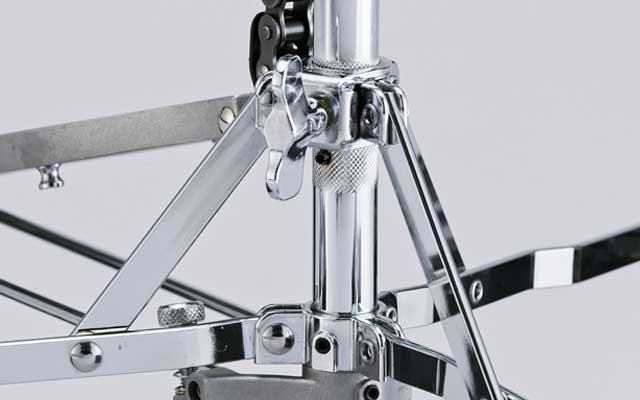

Knurling on Base Pipe (US.PAT.NO.10235979)
This knurling surface prevents the T-bolt from slipping off, which is the typical problem for flat base hi-hat stand.
(Pat.pending)

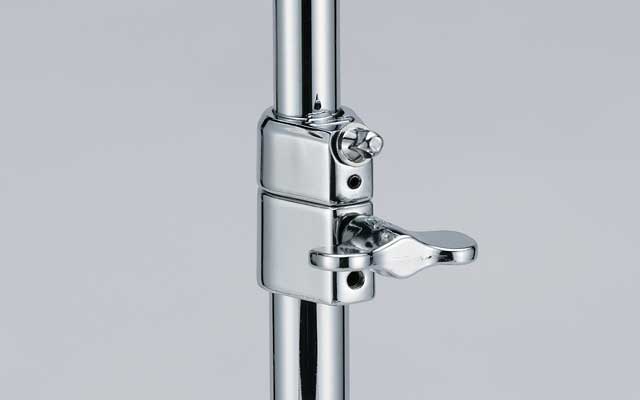

Die-Cast Pipe Joint / Memory Lock
The new Die-Cast Joint design provides a secure attachment by, tightly gripping the tube with a metal plate that is held in place by the T-bolt. In addition, a memory lock prevents the pipe from any unwanted rotation or sliding.

Easy Store Radius Rod
Hook the wire rods to the protrusions on the bottom of the footboard for quick and easy storage and transport.
